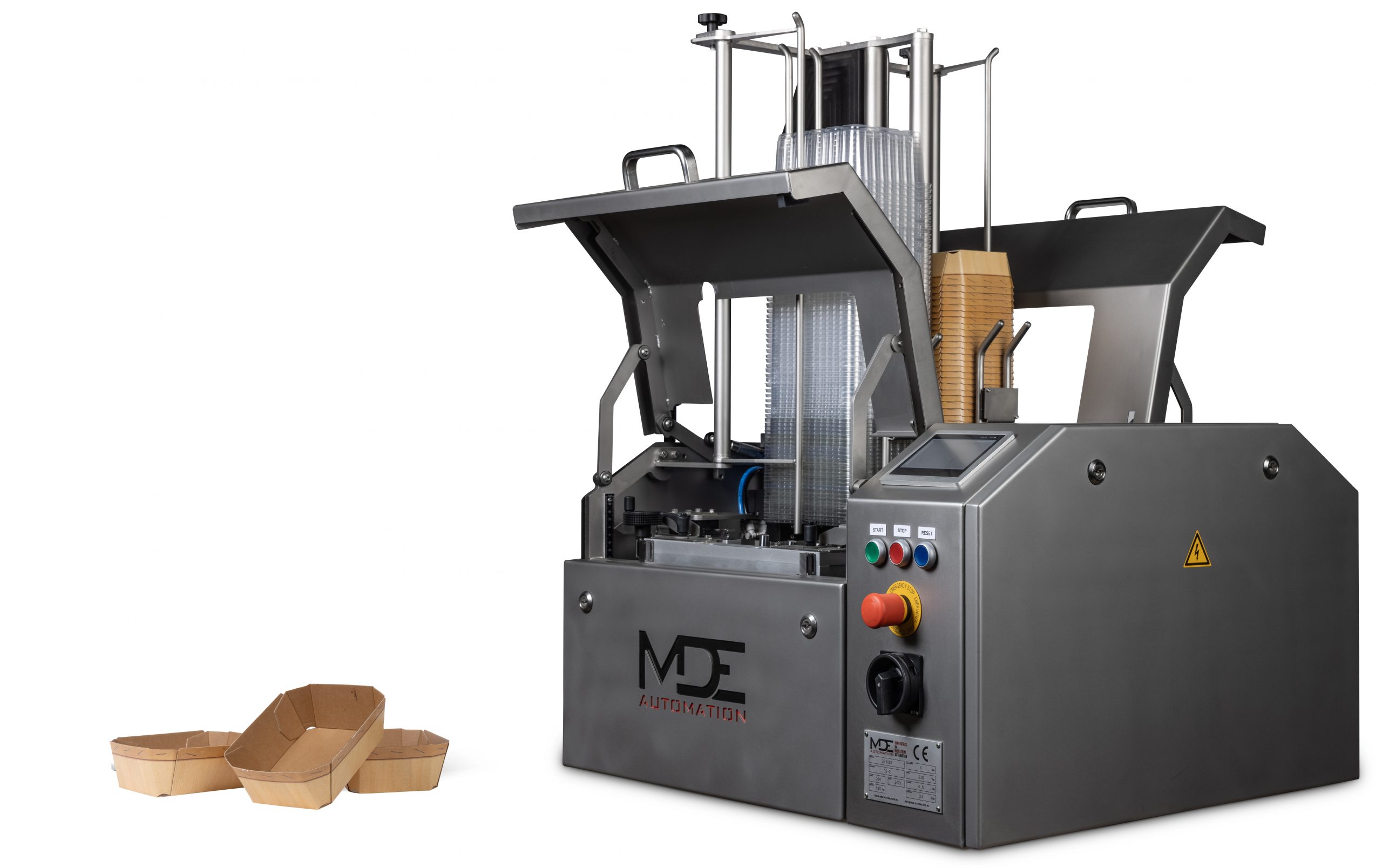

THE MDE VDS SERIES DE-NESTER
De-nesting of a wide variety of trays and punnets
Our denesters are capable of stacking and single-filing containers such as trays, punnets, and other types of product carriers in a controlled and fast manner.
The VDS series denesters are a budget-friendly entry-level denester that is capable of denesting not only plastic/thermoformed trays with rim but also able to denest cardboard trays without rim. By integrating smart adjustments and easy changeover tooling per lane, this denester can handle a wide range of sizes and product types.
The compact design allows this unstacker to be mounted above virtually any belt position. Optional integration of the touchscreen unlocks the possibility to work with extensive recipes. Speeds up to 15 trays per minute, per lane. Available in single and double lane configuration.
MDE VDS Serie Highlights
The solution
VDS Serie specifications
- Suitable for various types of trays, punnets, foam trays, cardboard packaging, etc.
- Speed up to 15 de-nest cycles per minute per lane
- Easy interchangeable tooling for quick product changes

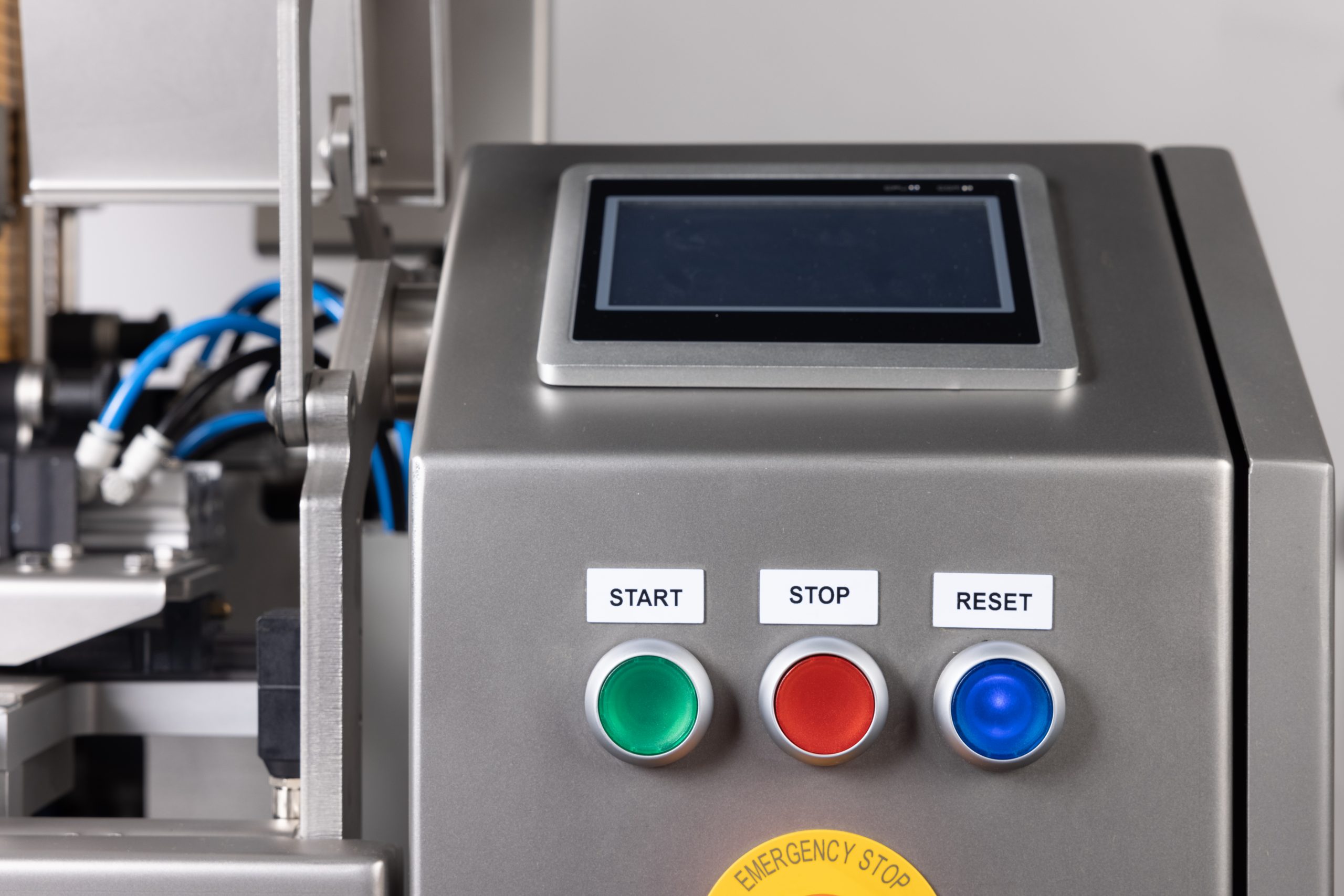

- Optional touchscreen for working with recipes
Basis specificaties
Uitbreidingen /Opties
Technische specificaties
Basis specificaties
- Suitable for various types of trays, punnets, foam trays, cardboard packaging, etc.
- Machine dimensions (LxWxH): 7200x2500x2850 mm
- Standard equipped with 1 set of exchangeable tooling.
- Clear and intuitive menu structure
- Available in single and double lane versions
- Capacity: up to 15 destacking cycles per minute per lane
- Integrated control platform
Uitbreidingen /Opties
- Full-color touchscreen for operation and recipe capability
- Full line integration
- Exchangeable tooling for various product types
- Support frame for installation above almost any type of discharge point
- Data integration through connection with data servers (SQL, MySQL, etc.)
- OEE Dashboard for insight into your production
Technische specificaties
| Type: Elektrische aansluiting: Stuurspanning: Perslucht aansluiting: Lengte: Breedte: Hoogte: Capaciteit: Gewicht: Omgevingstemperatuur: Relatieve luchtvochtigheid: | VDS 230VAC 24 VDC 6-10 bar, schoon en droog 1000 mm 550 mm 935 mm 15 producten/minuut, per spoor 60kg 5°C to 35°C max. 80% |
